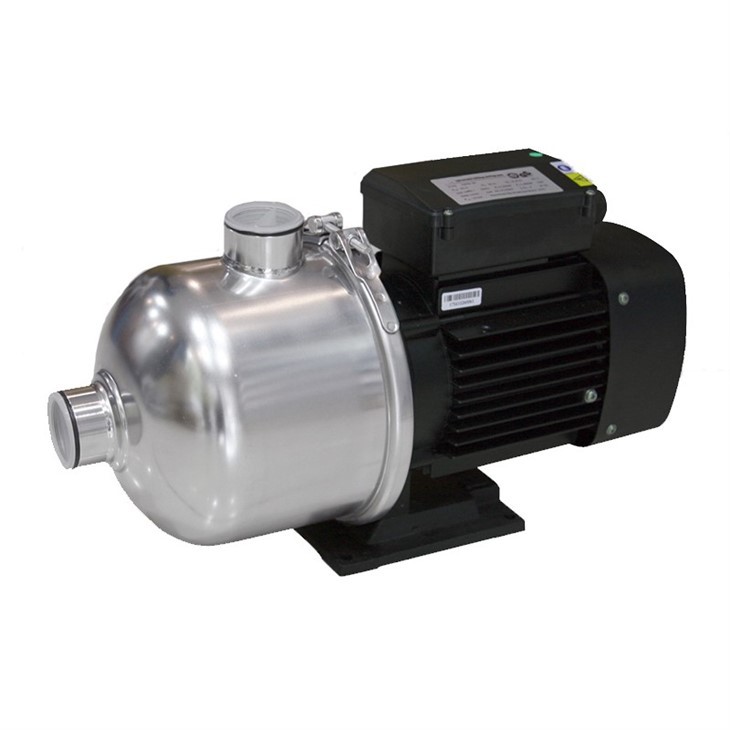

The CM Series stainless steel horizontal single stage centrifugal pumpis a single suction fully enclosed centrifugal pump, divided into two types: cylinder type and section type. It utilizes a horizontal motor and quick-loading mechanical seal, with axial suction and radial discharge. The flow parts of the pump are manufactured using stainless steel stamping, making it suitable for mildly corrosive media. It is characterized by low noise, light corrosion resistance, attractive appearance, compact size, light weight, and a long service life.
Key features of this horizontal pump include the use of stainless steel stamping for the flow parts, making it suitable for mildly corrosive media. The pump is renowned for its low noise, light corrosion resistance, appealing appearance, compact size, lightweight, and extended service life.
Using excellent hydraulic model and advanced manufacturing technology, greatly improve the pump performance and service life. Because the shaft seal is made of hard alloy and fluorine rubber, it can improve the reliability of the pump operation and the temperature of the conveying medium.

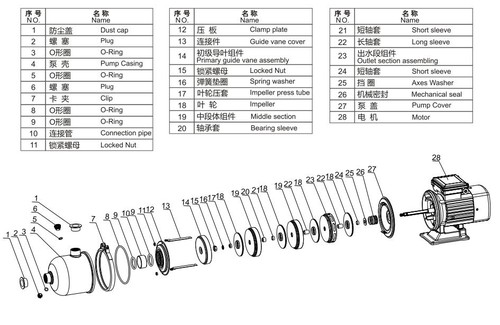

Composition of Horizontal Pump
This horizontal single stage centrifugal pump consists primarily of four main components: stator, rotor, bearings, and shaft seal.
Stator Section: The stator section comprises the suction stage, middle stage, discharge stage, and guide vanes. These sections are clamped together with tightening bolts to form the working chamber.
Rotor Section: The rotor section consists of the shaft, impellers, balancing disc, and shaft sleeve. Axial forces are balanced by the balancing disc.
Bearings: The bearings include the bearing housing, bearings, and bearing cover. Lubrication of the bearings is achieved through grease or thin oil.
Shaft Seal: The shaft seal employs a soft packing seal and is mainly composed of the water-inlet section, sealing envelope on the tail cover, packing, and water-deflecting ring.
Horizontal single stage centrifugal pump are directly driven by the prime mover through an elastic coupling.
Working conditions:
Medium temperature:
Low temperature:-20~+70C:
Standard model:+15~+70C
High temperature:+70~+104C.
Environmental temperature: ≤ 50℃
Max.working pressure: 1.0MPa
Based on diverse usage scenarios and requirements, we have designed four popular models for you to choose from:CM series;CMF series;CMH series and CMI series.
CM series: Section type.All stainless steel, including middle section, impeller, inlet section and outlet section.
|
Model |
CNP Model |
Power (kW) |
Rated flow (㎡/h) |
Rated head (m) |
Model |
CNP Model |
Power P2(kW) |
Rated flow (m/h) |
Rated head (m) |
|
CM2-20(T) |
CHLF2-20 |
0.37 |
2 |
14 |
CM4-20(T) |
CHLF4-20 |
0.55 |
4 |
15 |
|
CM2-30(T) |
CHLF2-30 |
0.37 |
21 |
CM4-30(T) |
CHLF4-30 |
0.75 |
22 |
||
|
CM2-40(T) |
CHLF2-40 |
0.55 |
28 |
CM4-40(T) |
CHLF4-40 |
0.75 |
30 |
||
|
CM2-50(T) |
CHLF2-50 |
0.55 |
35 |
CM4-50(T) |
CHLF4-50 |
1.0 |
38 |
||
|
CM2-60(T) |
CHLF2-60 |
0.75 |
42 |
CM4-60(T) |
CHLF4-60 |
1.1 |
45 |
||
|
CM8-10(T) |
0.55 |
8 |
12 |
CM8-10B(T) |
CHLF8-10 |
0.55 |
8 |
9 |
|
|
CM8-15(T) |
0.75 |
20 |
CM8-20B(T) |
CHLF8-20 |
0.75 |
19 |
|||
|
CM8-20(T) |
1.0 |
24 |
CM8-30B(T) |
CHLF8-30 |
1.1 |
26 |
|||
|
CM8-25(T) |
1.5 |
27 |
CM8-40B(T) |
CHLF8-40 |
1.5 |
37 |
|||
|
CM8-30(T) |
1.85 |
36 |
CM8-50B(T) |
CHLF8-50 |
2.2 |
46.5 |
|||
|
CM8-35(T) |
2.2 |
43 |
CM8-60BT |
CHLF8-60 |
3.0 |
52 |
|||
|
CM8-40(T) |
2.2 |
48 |
|||||||
|
CM12-10(T) |
1.0 |
12 |
13.5 |
CM12-10B(T) |
CHLF12-10 |
0.75 |
12 |
9.5 |
|
|
CM12-15(T) |
1.5 |
20 |
CM12-20B(T) |
CHLF12-20 |
1.1 |
19.5 |
|||
|
CM12-20(T) |
1.85 |
28 |
CM12-30B(T) |
CHLF12-30 |
1.85 |
29.5 |
|||
|
CM12-25(T) |
2.2 |
33.5 |
CM12-40B(T) |
CHLF12-40 |
2.2 |
39.5 |
|||
|
CM12-30T |
3.0 |
39 |
CM12-50BT |
CHLF12-50 |
3.0 |
50 |
|||
|
CM16-10(T) |
CHLF16-10 |
1.0 |
16 |
10 |
CM20-10(T) |
CHLF20-10 |
1.0 |
20 |
10.5 |
|
CM16-20(T) |
CHLF16-20 |
1.5 |
20 |
CM20-20(T) |
CHLF20-20 |
1.85 |
20 |
||
|
CM16-30(T) |
CHLF16-30 |
2.2 |
30 |
CM20-30T |
CHLF20-30 |
3.0 |
31.5 |
||
|
CM16-40T |
CHLF16-40 |
3.0 |
40 |
CM20-40T |
CHLF20-40 |
4.0 |
40 |
CMF series:Cylinder type. All stainless steel, including middle section, impeller, inlet &outlet .
|
Model |
CNP Model |
Power P2(kW) |
Rated flow (m³/h) |
Rated head (m) |
Model |
CNP Model |
Power P2(kW) |
Rated flow (m³/h) |
Rated head (m) |
|
CMF2-20(T) |
CHL2-20 |
0.37 |
2 |
14 |
CMF4-20(T) |
CHL4-20 |
0.55 |
4 |
15 |
|
CMF2-30(T) |
CHL2-30 |
0.37 |
21 |
CMF4-30(T) |
CHL4-30 |
0.75 |
22 |
||
|
CMF2-40(T) |
CHL2-40 |
0.55 |
28 |
CMF4-40(T) |
CHL4-40 |
0.75 |
30 |
||
|
CMF2-50(T) |
CHL2-50 |
0.55 |
35 |
CMF4-50(T) |
1.0 |
38 |
|||
|
CMF2-60(T) |
CHL2-60 |
0.75 |
42 |
CMF4-60(T) |
1.1 |
45 |
|||
|
CMF8-10(T) |
0.55 |
8 |
12 |
CMF8-10B(T) |
CHL8-10 |
0.55 |
8 |
9 |
|
|
CMF8-15(T) |
0.75 |
20 |
CMF8-20B(T) |
CHL8-20 |
0.75 |
19 |
|||
|
CMF8-20(T) |
1.0 |
24 |
CMF8-30B(T) |
CHL8-30 |
1.1 |
26 |
|||
|
CMF8-25(T) |
1.5 |
27 |
CMF8-40B(T) |
CHL8-40 |
1.5 |
37 |
|||
|
CMF8-30(T) |
1.85 |
36 |
CMF8-50B(T) |
CHL8-50 |
2.2 |
46.5 |
|||
|
CMF8-35(T) |
2.2 |
43 |
|||||||
|
CMF8-40(T) |
2.2 |
48 |
|||||||
|
CMF12-10(T) |
1.0 |
12 |
13.5 |
CMF12-10B(T) |
CHL12-10 |
0.75 |
12 |
9.5 |
|
|
CMF12-15(T) |
1.5 |
20 |
CMF12-20B(T) |
CHL12-20 |
1.1 |
19.5 |
|||
|
CMF12-20(T) |
1.85 |
28 |
CMF12-30B(T) |
CHL12-30 |
1.85 |
29.5 |
|||
|
CMF12-25(T) |
2.2 |
33.5 |
CMF12-40B(T) |
CHL12-40 |
2.2 |
39.5 |
|||
|
CMF12-30T |
3.0 |
39 |
CMF12-50BT |
CHL12-50 |
3.0 |
50 |
|||
|
CMF16-10(T) |
CHL16-10 |
1.0 |
16 |
10 |
CMF20-10(T) |
CHL20-10 |
1.0 |
20 |
10.5 |
|
CMF16-20(T) |
CHL16-20 |
1.5 |
20 |
CMF20-20(T) |
CHL20-20 |
1.85 |
20 |
||
|
CMF16-30(T) |
CHL16-30 |
2.5 |
30 |
CMF20-30T |
CHL20-30 |
3.0 |
31.5 |
