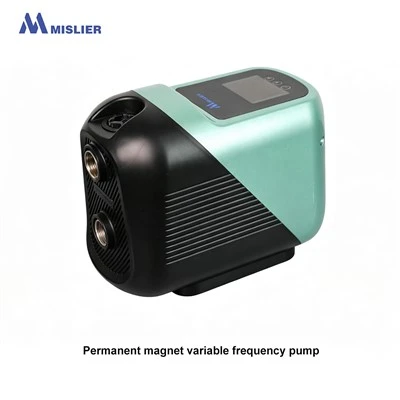

Mislier Smart Permanent Magnet Variable Frequency Pump adopts innovative patented technology integrating high-efficiency permanent magnet synchronous motor, intelligent hardware and integrated fluid components, with effective noise reduction and comprehensive safety protection.
Compact in size yet powerful in performance, it automatically adjusts power output according to actual water consumption for on-demand water supply to achieve remarkable energy conservation.
It perfectly suits domestic water boosting needs for apartments, duplex houses, small villas and other residential scenarios. Fitted with a permanent magnet brushless motor, the Smart Booster Pump achieves far better power saving than conventional motors.
Equipped with variable-frequency constant pressure technology, the boosting pressure is adjustable freely. The optimized fluid design realizes ultra-quiet operation and compact structure to save installation space.
Boasting stylish appearance, LED digital display and standard Bluetooth connection, the pump supports convenient mobile phone control.
Empowered by intelligent and internet-connected technologies, Mislier pumps realize precise perception and intelligent strategic control to adapt to various application scenarios.
Product Features
- Protection Class: IPX6
- Liquid Temperature: 0°C ~ 80°C
- Insulation Class: F
- Frequency: 50–60Hz
- Power Supply Voltage: AC 160–240V
application
- Applicable for water pressure boosting in various household and commercial water supply scenarios;
- Tap water pressurization, building water supply, garden irrigation systems;
- Water circulation for HVAC, air conditioning, boilers and other water systems;
- Supporting application for all types of machinery and equipment, customized products and functions are available.
Product Parameters
| Model | Voltage | Power | Hmax | Qmax | Liquid Temp | Prot. Grade | Insul. Class | Pipe Dia |
|---|---|---|---|---|---|---|---|---|
| Power Box 450 | 160V-240V | 100W-450W | 40 m | 4.2 m³/h | 80 ℃ | IPX6 | F | DN25 |
| Power Box 600 | 160V-240V | 100W-600W | 45 m | 5 m³/h | 80 ℃ | IPX6 | F | DN25 |
| Power Box 800 | 160V-240V | 100W-800W | 48 m | 6 m³/h | 80 ℃ | IPX6 | F | DN25 |
Installation Precautions
- The intelligent permanent magnet variable frequency pump can be installed indoors or outdoors. For outdoor installation, sunshade and anti-freezing measures are recommended to extend service life.
- The installation site shall be equipped with drainage facilities to avoid ponding caused by pipeline water leakage. The pump shall be mounted out of children's reach with isolation protection in place.
- The Smart Booster Pump generates slight vibration during operation. Secure the unit firmly for vertical riser or suspended installation to prevent loosening and falling off.
- All electrical work shall be completed by qualified electricians. An earth leakage circuit breaker must be fitted for power protection, and the power socket shall be reliably earthed.
- It is advised to install the pump close to the liquid source to minimize head loss.
- Union joints are recommended at the pump inlet and outlet to facilitate future inspection and maintenance.
- Do not install the pump inside a fully enclosed all-metal cabinet, as it will block wireless communication signals.
- Disconnect the power supply before all installation and maintenance work. Unauthorized disassembly and repair are prohibited.
Operating Instructions
After the Smart Booster Pump is installed, connect the power supply to start the unit.
Notes:
- Before startup, confirm correct and stable power connection, the voltage complies with rated specifications, and the inlet & outlet pipelines are tightly sealed.
- If the pump runs normally but no water discharges, loosen the air vent screw while the pump is running for around 2 minutes. Tighten the screw again once water flows out, then the pump can work normally.
- This pump is equipped with a child lock function. It can be operated directly after power-on without unlocking. The child lock will activate automatically after 60 seconds of inactivity.
①-Four icons: Device flow switch, Child lock, Device running, Device connected
②-Real-time parameters: Real-time pressure (Bar), Real-time temperature (°C)
③-Pressure setting: Set pressure (Bar), Set temperature (°C)
④-Mode selection: Adaptive mode (intelligently adapts water supply); Manual mode (manual full-power start/stop of water supply)
⑤-Function buttons: Adjust pressure or switch between manual/smart modes (Increase ▲ / Power / Decrease ▼)
