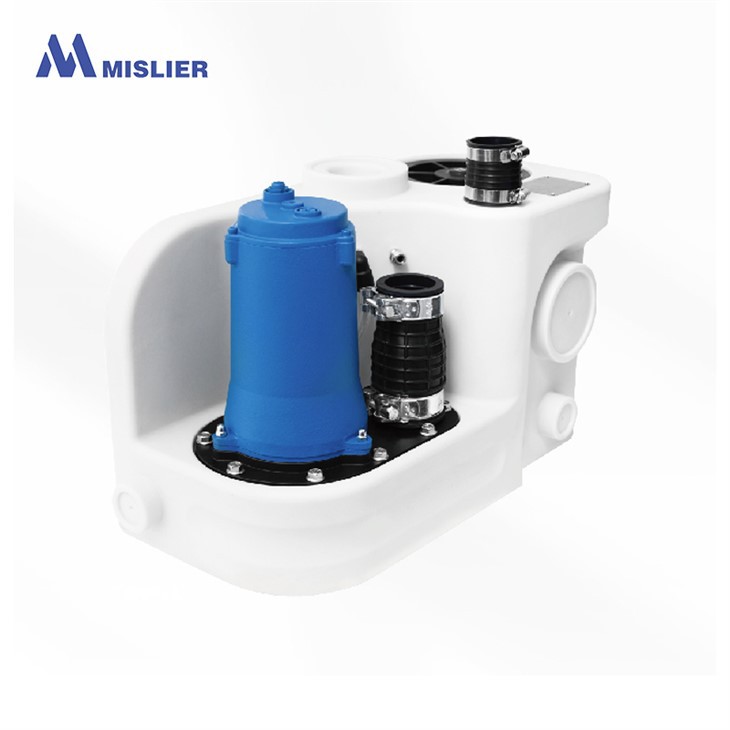

Mini Wide Passage Vortex Sewage Lifting Pump
The Mini Wide Passage Vortex Sewage Lifting Pump is a compact and efficient wastewater lifting solution specially designed for residential and light commercial applications. Equipped with a 25mm wide-passage vortex impeller, it can easily handle wastewater containing soft solids and impurities, greatly reducing the risk of clogging and ensuring stable long-term operation.

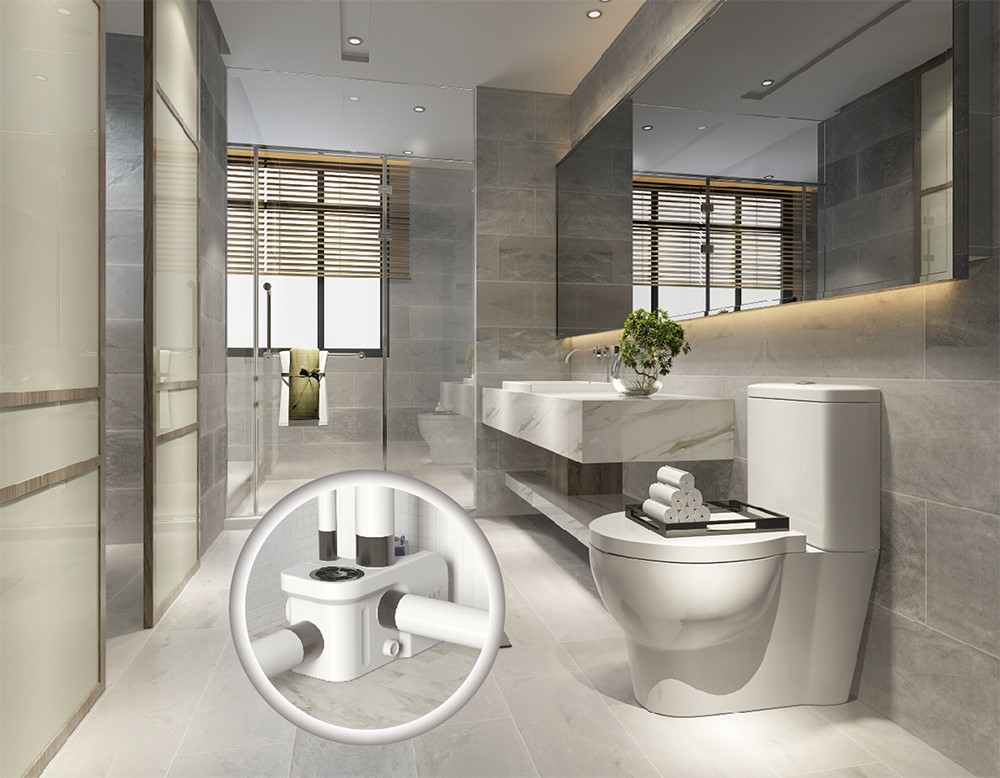

Its compact structure allows flexible installation in limited spaces such as bathrooms, cabinets, utility rooms, and concealed wall systems. The unit is ideal for basement drainage, toilet additions, shower rooms, laundry rooms, and renovation projects where gravity drainage is unavailable.
The system features dual liquid-level control with air pressure and float switch protection for reliable automatic operation. An optional WiFi monitoring and alarm system enables users to monitor pump status remotely in real time.
Product Applications
Basement bathrooms and toilets
Shower rooms and laundry rooms
Villas and residential buildings
Small commercial spaces
Renovation and retrofit drainage systems
Product Features
25mm wide-passage vortex impeller, anti-clogging design
Compact size for easy concealed installation
Low-noise and energy-efficient operation
Dual protection: air pressure + float switch control
Optional WiFi remote monitoring system
Suitable for new construction and renovation projects
Maximum start frequency: 60 times/hour
Optional 5-year warranty available.
Performance Curve

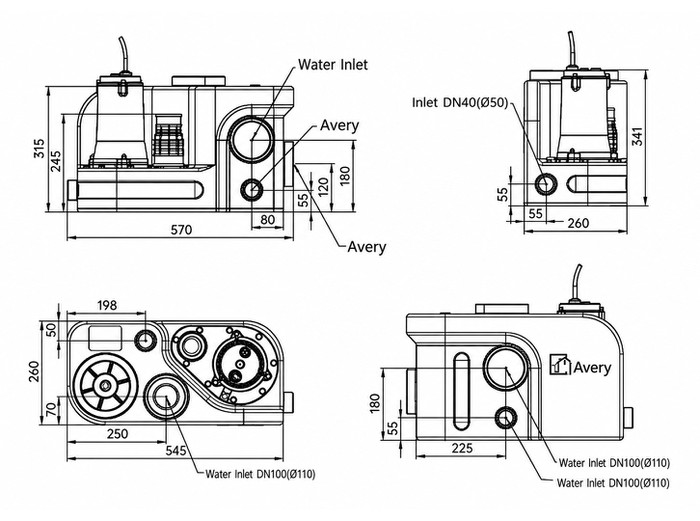

Equipment dimension drawing
|
Maximum Flow Rate: 20 m³/h |
Power Supply: 220V |
Current: 5.2 A |
|
Maximum Head: 10 m |
Passage Diameter: 25 mm |
Rated Head: 9 m |
|
Power: 1.1 kW |
Outlet Size: DN40 |
Rated Flow Rate: 6 m³/h |
More built-in sewage lift pump station,Please click on the image below for more information.↓
|
|
|
|
| large passage vortex pump | sanitary sewer lift station | Residential Sewer Pump Station |
|
|
|
|
| Domestic Sewer Pump Station | Sanitary Sewer Lift Station | Mini passage vortex pump |
FAQ
Q: Do you provide OEM or customized services?
A: Yes, we support OEM, logo customization, packaging design, and product customization according to your requirements.
Q: How can l pay you?
A: We accept T/T, L/C, D/P, and other international payment methods.
What warranty do you provide?
A: Most products come with a standard warranty, and selected models can offer up to 5 years warranty.
Q: What about the delivery time?
A: Usually the delivery time is about 10~15 days.Iif you need the product badly, we can discussagain to shorten the delivery time and help ycu get the product as soon as possible.
Q: How do you ensure product quality?
A: All products are tested before delivery to ensure stable performance, reliable quality, and compliance with export standards.
Hot Tags: oem mini lift station pump for septic tank, China oem mini lift station pump for septic tank manufacturers, suppliers, factory
